20 MM 45 PPS1 ELKOŅA SAVIENOJUMS 20 MM

Description

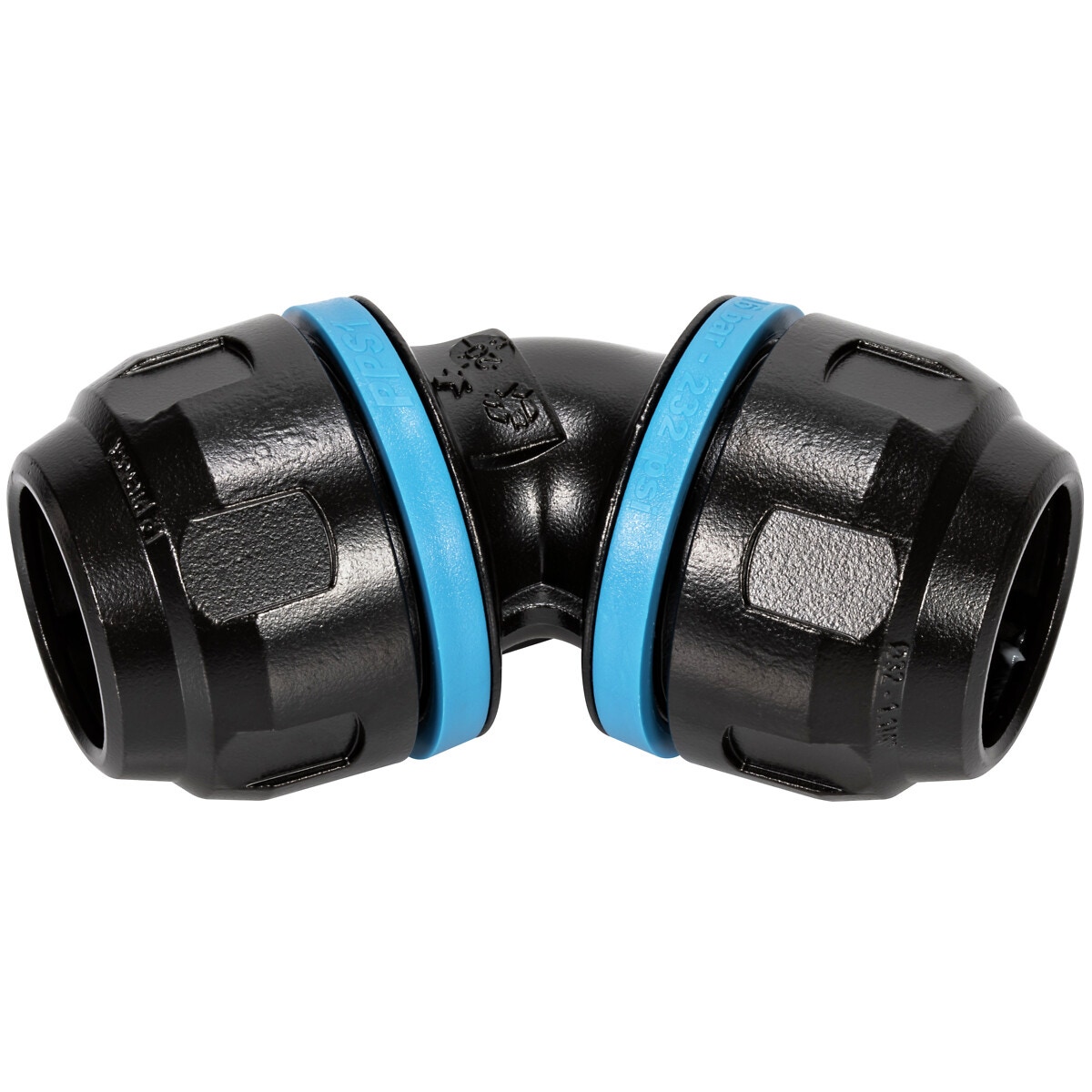

Prevost 45° equal female elbow fitting PPS1 4C | the new PPS Grip Concept is based on a stainless steel ring with teeth that penetrate the aluminium | leak tightness is achieved via a new contoured and lubricated seal, with optimised design and properties (the seal remains perfectly leak tight even under the harshest conditions) | material 100 % aluminium, EN AB 46100 | standard DESP 2014/68/UE REACH | operating temperature -20…+80 °C | fluid compressed air | operating pressure 0 – 16 bar | vacuum -0,98 bar | pipe outer diameter Ø 20 mm | A 38 mm | B 83 mm | C 59 mm

Attributes

Package length (cm): 4 | Package width (cm): 8.2 | Package height (cm): 8.1 | Gross weight (kg): 0.101000 | EAN: 3660058302340
