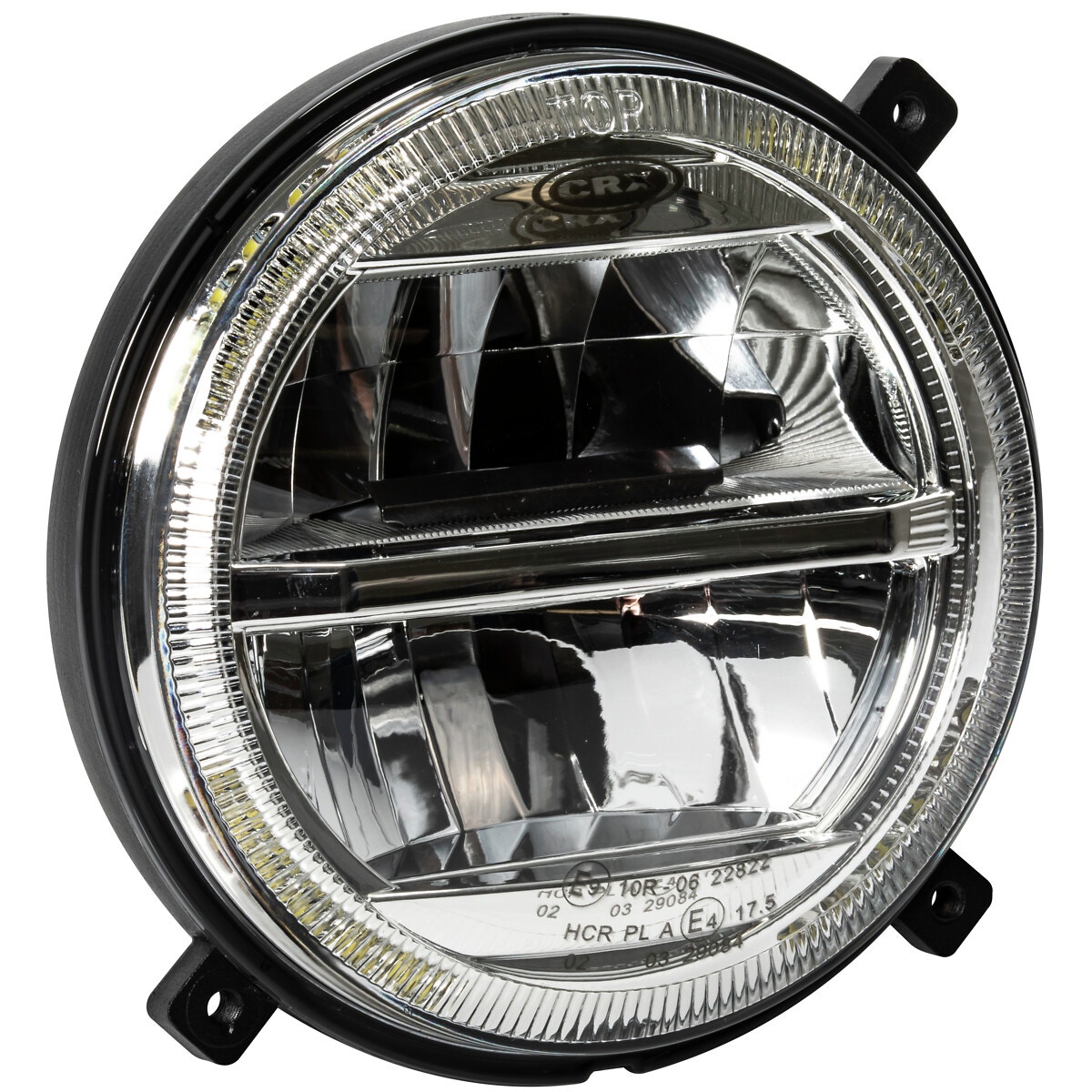

140 MM MF APAĻAIS 140 MM LED TĀLVADĪBAS LUKTURIS

Description

E-approved LED headlight with park light | voltage 10 – 30 V DC | driving beam luminous flux theoretical 1100 lm / operational 492 lm | driving beam nominal power 16 W LED | driving beam amperage usage 12 V 1.33 A / 24 V 0.66 A | high beam luminous flux theoretical 2300 lm / operational 1460 lm | high beam nominal power 21 W LED | high beam amperage usage 12 V 1.75 A / 24 V 0.88 A | parking light nominal power 1.0 W LED | colour temperature 5700 k | reference number 17.5 | protection class IP66 / IP69K | EMC CISPR 25 class 3 (excellent electromagnetic compatibility) | operating life 30000 h | shockproof aluminium housing | UV-resistant polycarbonate lens | H4 connector and separate parking light cable | operating temperature -40…+50 °C | temperature control | low voltage protection | reverse polarity protection | 3-point fixing | dimensions Ø 140 x 88 mm

Attributes

Spare part type: Electrical system | Package length (cm): 18.5 | Package width (cm): 18.5 | Package height (cm): 9.5 | Gross weight (kg): 0.868000 | EAN: 6418914180024
